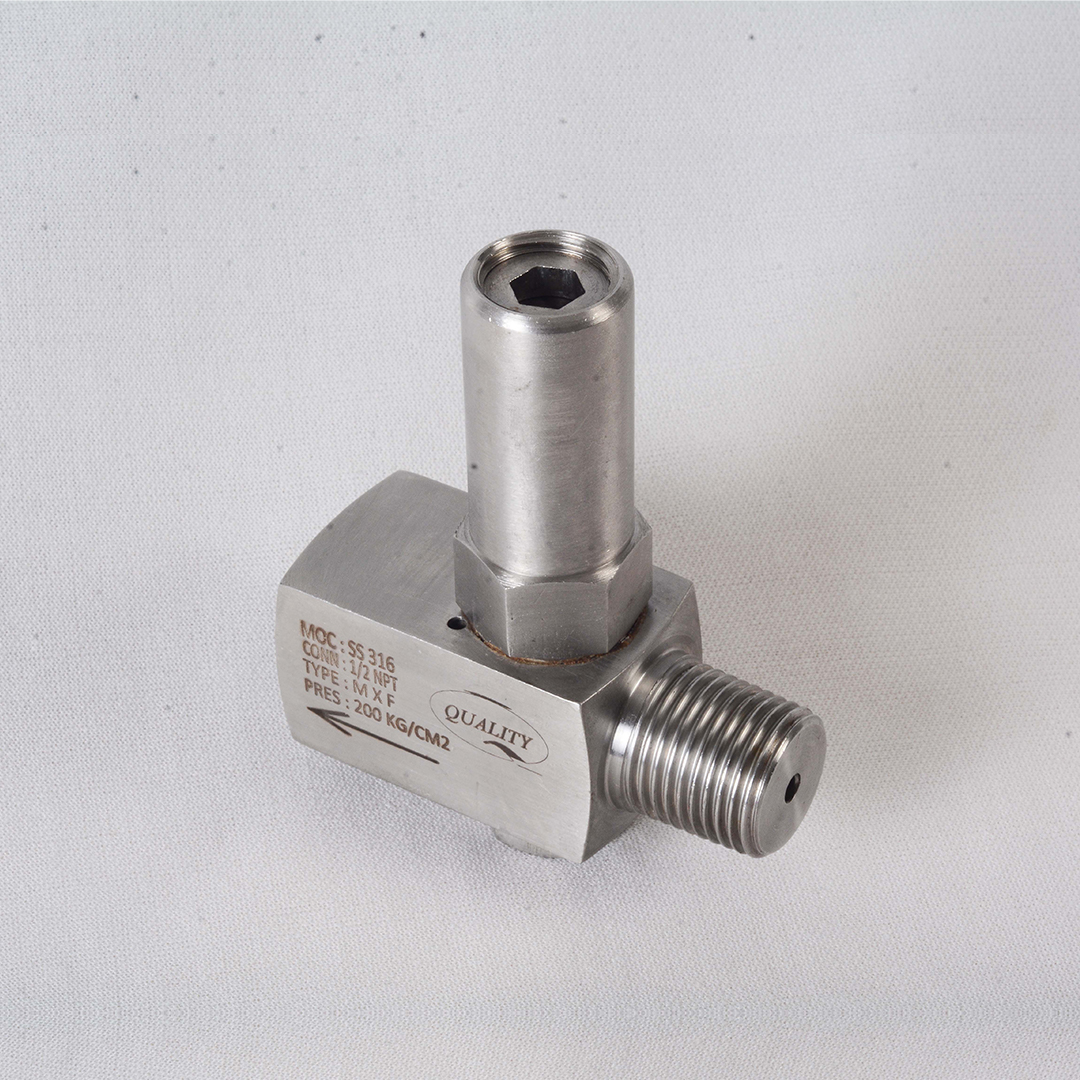

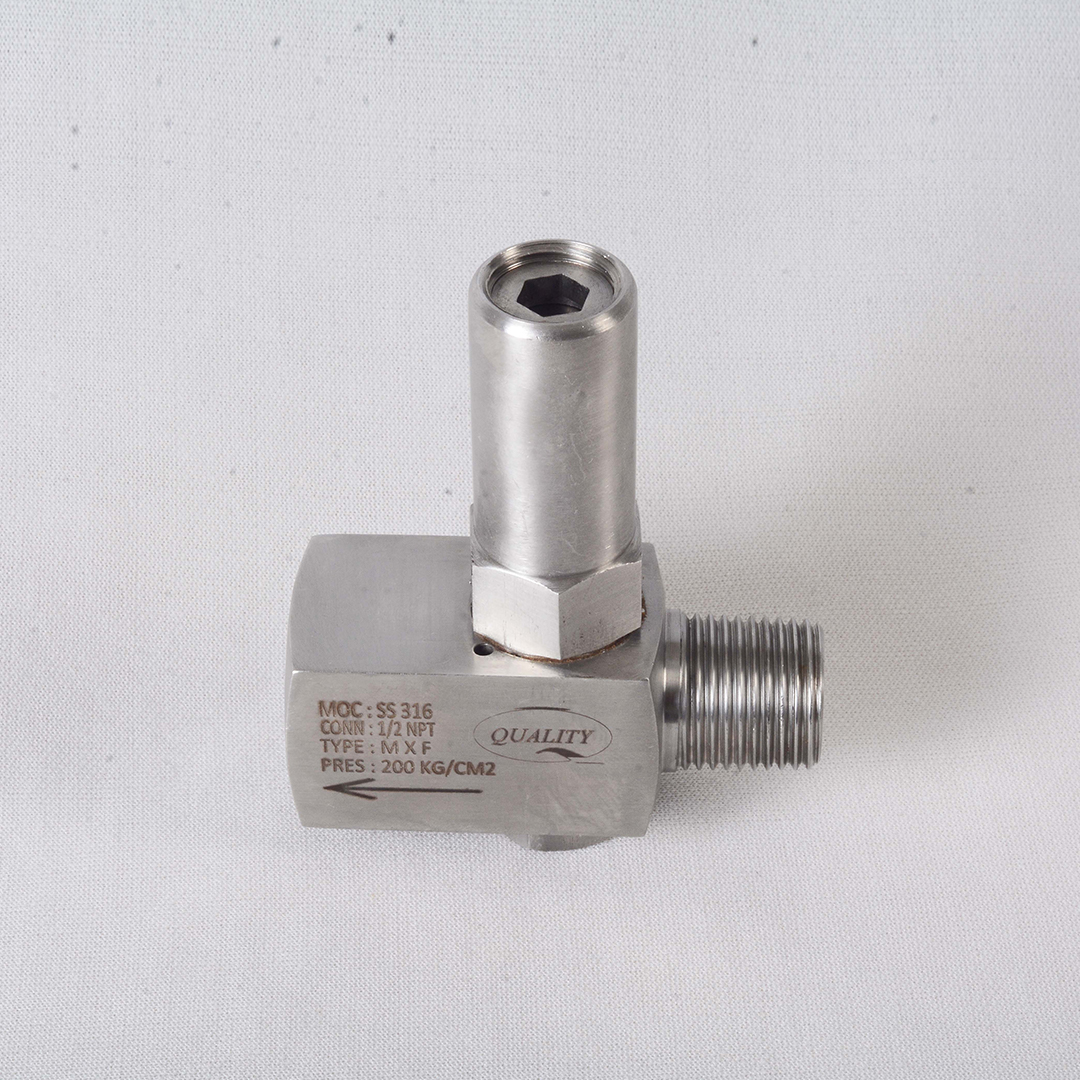

Pressure Gauge Saver Manufacturer
Quality Industries is a Leading Gauge Saver Manufacturer, Supplier and Exporter From India. Gauge Saver (Pressure Limit Valve) is used where the process pressure exceeds the over range limit of the pressure instrument. When the process pressure exceeds the pre-set pressure, Gauge Saver shuts off the pressure to the instrument and thereby prevents damage of the sensing element and protects the calibration. Generally minimum setting 2 offered is 1 kg/cm g (lower setting on request). Normally offered in SS316 & Monel with standard connection of 1/2" NPT(F) x 1/2" NPT(M) (other material / connection on request)
Specifications of Pressure Gauge Saver
- • Size : ¼”, 3/8”, ½”,
- • End Connections : - M X M, M X F, NPT, BSPP, BSPT
- • Material :316 SS / 316L SS / 304 SS / SS 304 L
- • Minimum working Pressure: 0 to 2.5kg - Low pressure
- • Maximum working Pressure :0 to 420kg - High pressure
Frequently Asked Questions
A Gauge Saver, also known as a Pressure Limit Valve, is designed to protect pressure instruments by isolating them when process pressure exceeds a predetermined limit. This mechanism prevents damage to the instrument's sensing element and maintains calibration accuracy.
A gauge saver, also known as a pressure limit valve or overpressure protector, safeguards pressure gauges and instruments from damage caused by sudden pressure spikes or overloads by shutting off the pressure to the instrument when a pre-set pressure limit is exceeded.
Gauge Savers are commonly employed in systems where process pressures can exceed the operational limits of pressure instruments, such as in chemical processing, oil and gas, and power generation industries.
Yes, Gauge Saver are designed to handle high-pressure environments, making them suitable for industrial applications.
Inquire Now
The company started on a very small scale in 2011 and now has the latest manufacturing and testing facility. The company is located in Gujarat, in the western part of India.
