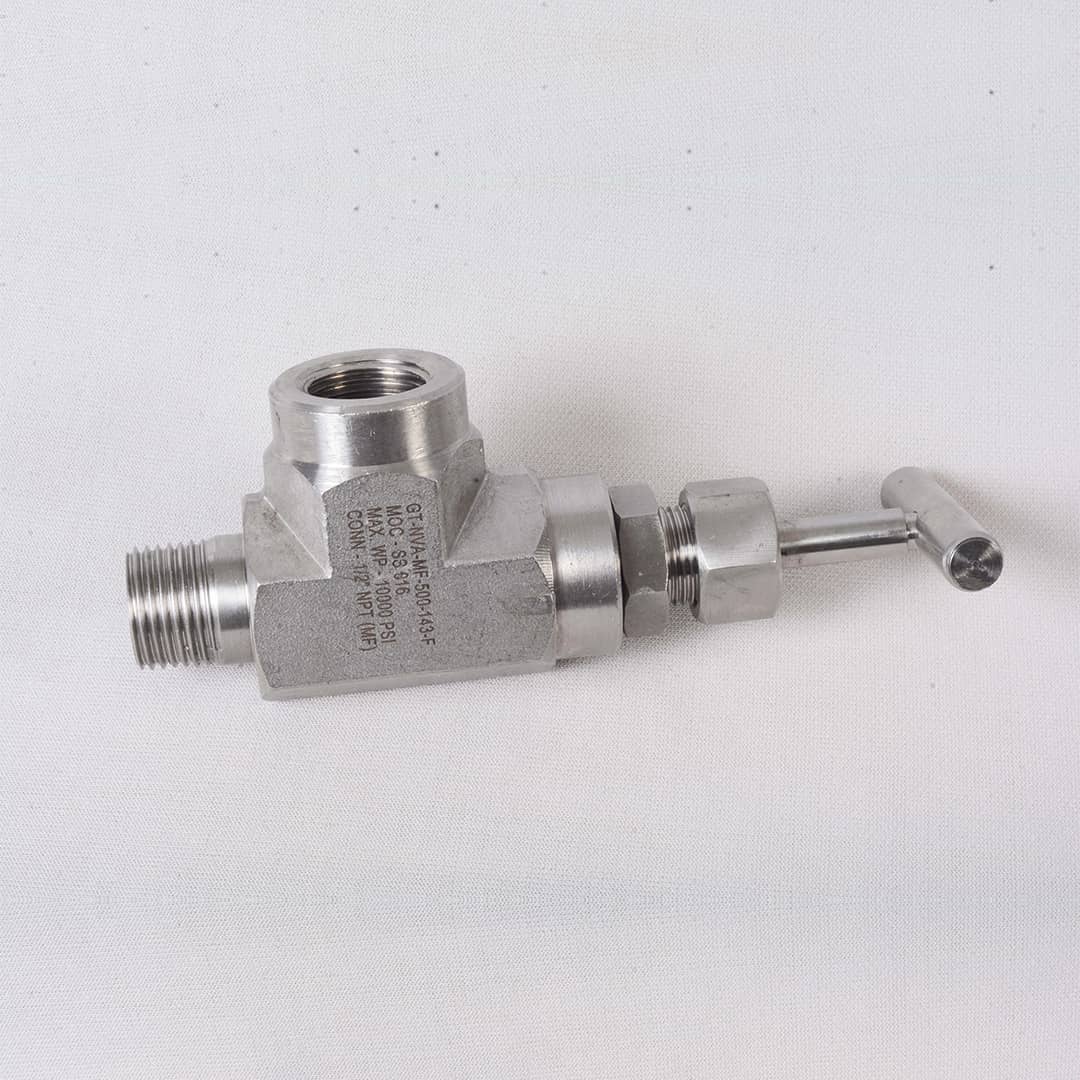

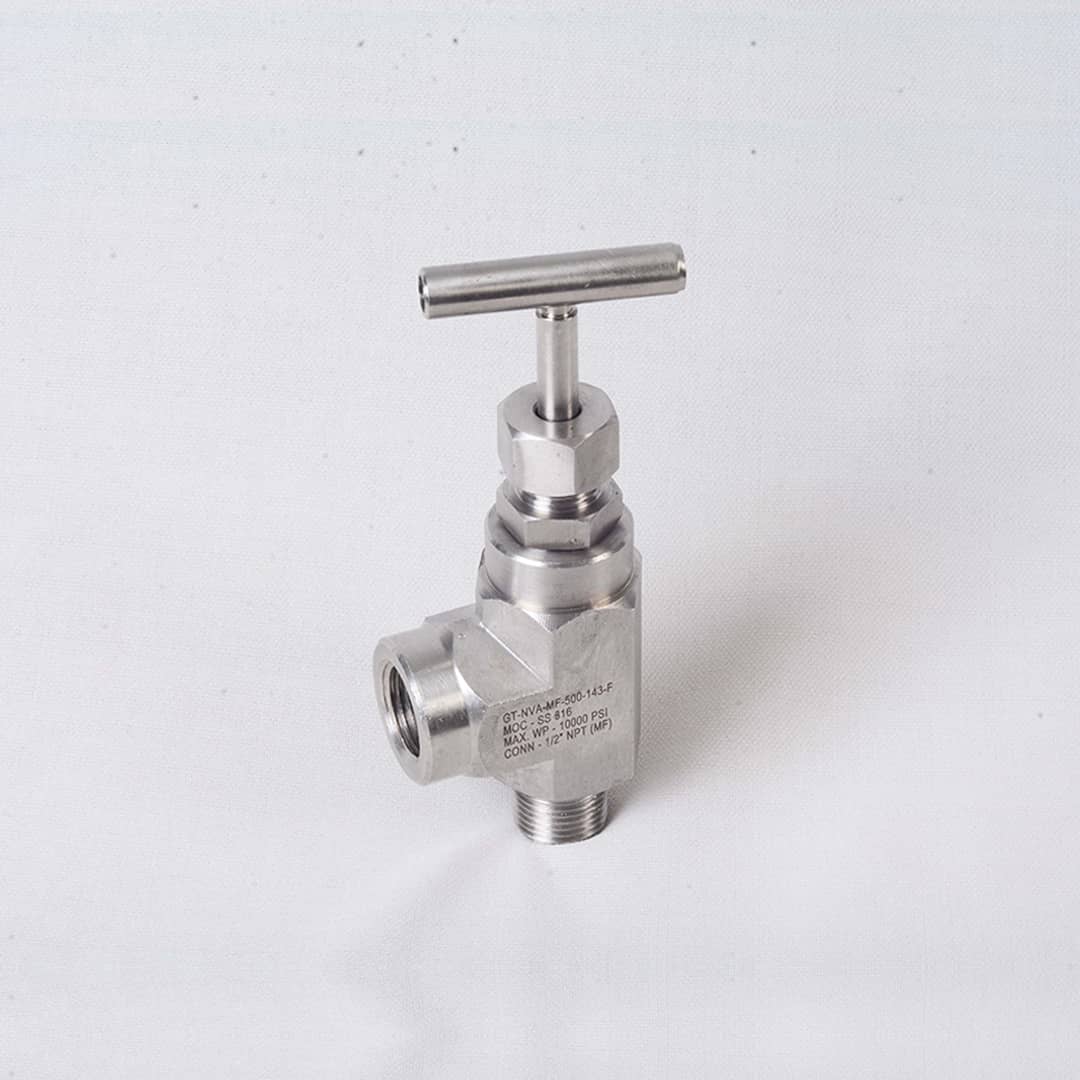

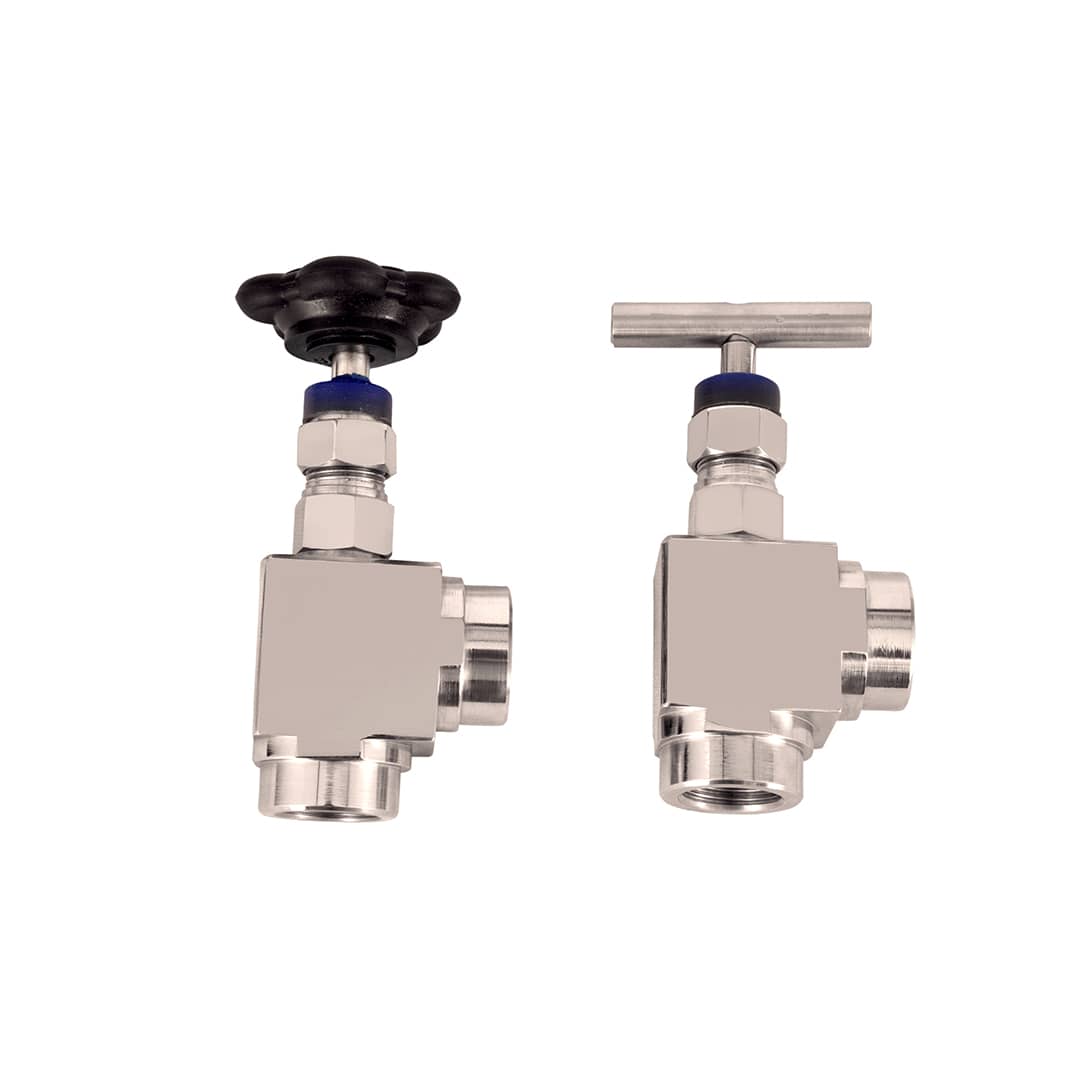

Angle Type Needle Valves Manufacturer
Quality Industries is a Leading Angle Type Needle Valves Manufacturer, Supplier and Exporter From India. Angle type needle valves are specialized flow control devices designed to provide precise regulation of fluid or gas flow in pipelines. Unlike traditional inline needle valves, angle needle valves feature a 90-degree angled design, which allows for more convenient installation in tight spaces or systems where a change in flow direction is required. The needle valve operates by adjusting the position of a tapered needle inside the valve body, offering fine control over the flow rate. These valves are commonly used in applications where accurate flow regulation is critical, such as in instrumentation, chemical processing, and laboratory environments. Constructed from durable materials like stainless steel or brass, angle type needle valves are capable of withstanding high pressures and temperatures, making them suitable for demanding industrial conditions where reliability and precise control are essential.
Features of Angle Type Needle Valves
- • QUALITY ANGLE TYPE Series Needle Valves.
- • QUALITY Needle Valves are available in SS 304, SS 304L, SS 316, SS 316L
- • Variety of end connections - F X F, F X M, M X M, NPT, BSPP, BSPT
- • Maximum working pressure up to 3000 psi, 6000 psi, 10000 psi
- • Size - 1/4″,3/8”, ½”,3/4”, 1”
- • Non-Rotating Vee-tip / Ball tip provides repetitive leak tight shut-off
Frequently Asked Questions
An angle type needle valve is a type of control valve used to regulate the flow of fluids in a system. The valve has a needle-shaped plunger that fits into a conical seat, allowing precise flow control. The angle design refers to the 90-degree turn in the flow path, ideal for applications where space is limited or where directional changes are required.
These valves are used in:
- Instrumentation systems
- Gas and liquid flow control
- Sampling lines
- Chemical processing
- Hydraulic systems
Common materials include:
- Stainless Steel
- Brass
- Alloy Steels
These valves operate by turning a handwheel to move a needle-shaped plunger into or out of a conical seat. This movement adjusts the flow rate through the valve. The 90-degree angle allows fluid to change direction while being controlled precisely.
- Precise Flow Control: The fine threading of the plunger allows for accurate flow adjustments.
- Compact Design: The angle form reduces the need for additional elbows or fittings, saving space.
- High Pressure and Temperature Tolerance: Suitable for demanding applications.
Inquire Now
The company started on a very small scale in 2011 and now has the latest manufacturing and testing facility. The company is located in Gujarat, in the western part of India.
