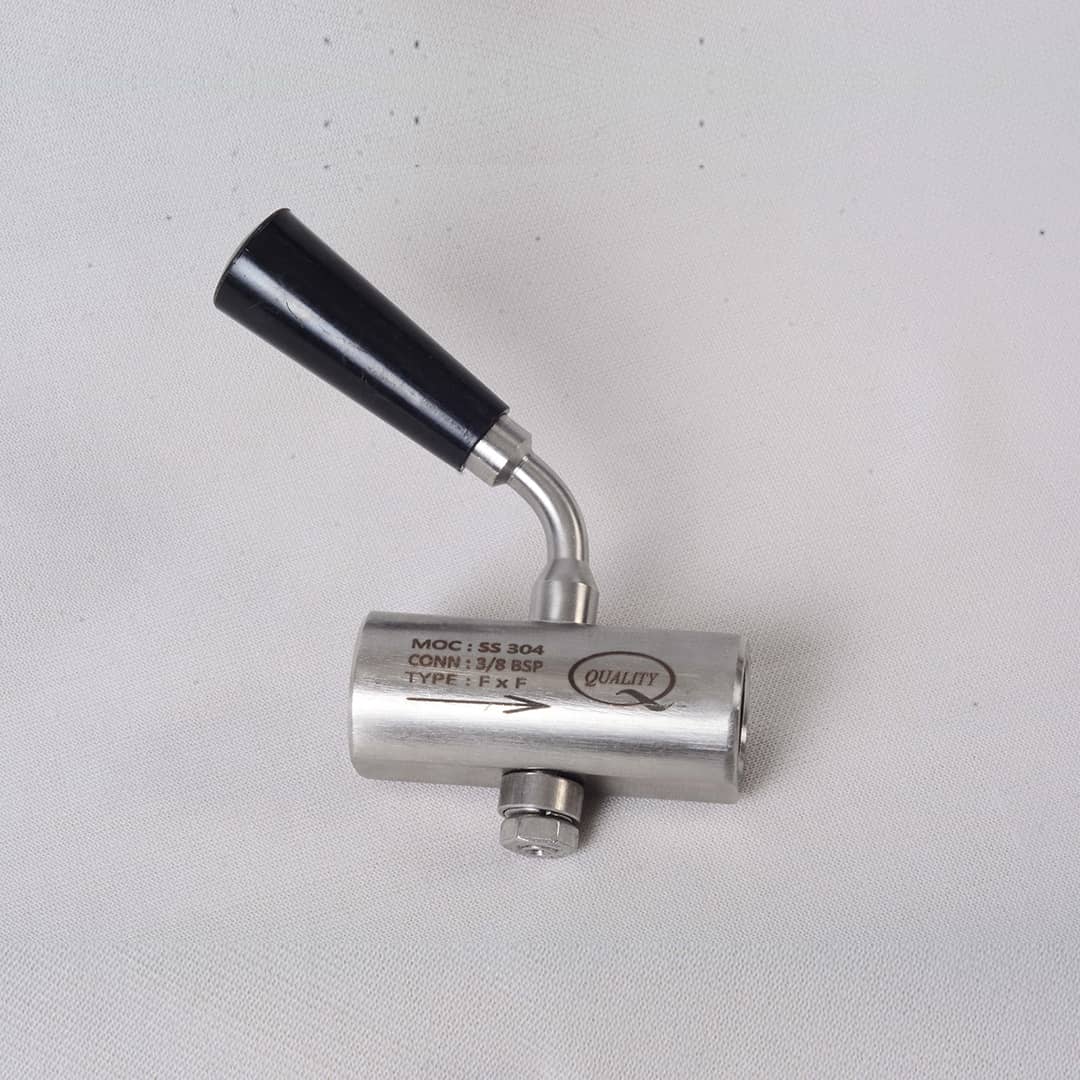

Gauge Cock

Gauge Cock Manufacturer

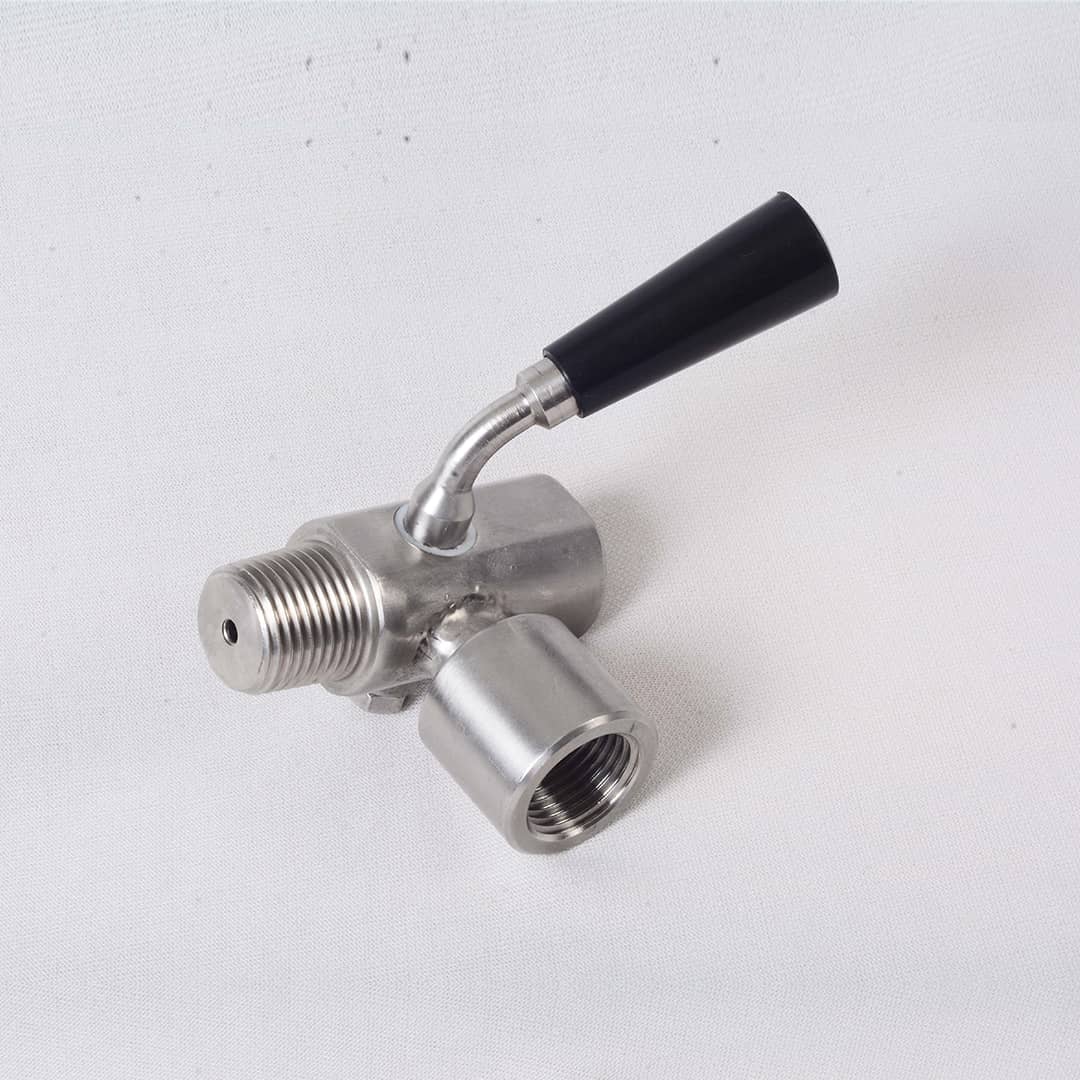

Using Gauge cock is an economical method for isolating the pressure instrument from the 2 process fluid. Generally used for low pressure Application below 25 kg/cm (g). Available in Two Way as well as There Way. 2 Way Gauge Cock provides isolation of the instrument. In 3 Way Gauge Cock there is provision for isolation as well as vent (drain). Normally available in SS304 & SS316. Standard connection is 1/2" NPT(M) threads at process side and 1/2" NPT(F) at instrument & drain sides (other connections available on request)This cock is use with the pressure gauge for isolation and drain purpose.

Specifications

• • Size : ¼", 3/8”, ½”
• • End Connections : NPT / BSPP / BSPT
• • Material : SS 316 SS, SS 316L, SS 304, SS 304L
• • Seal :PTFE
• • Maximum working Pressure:600 psi
